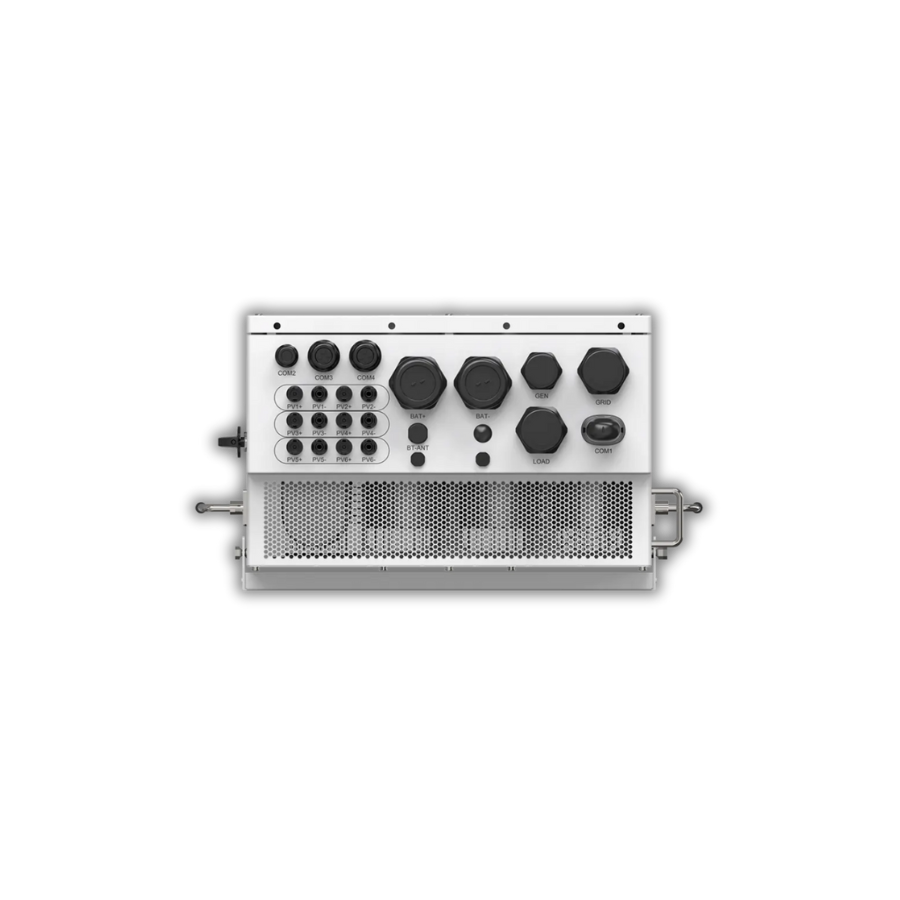

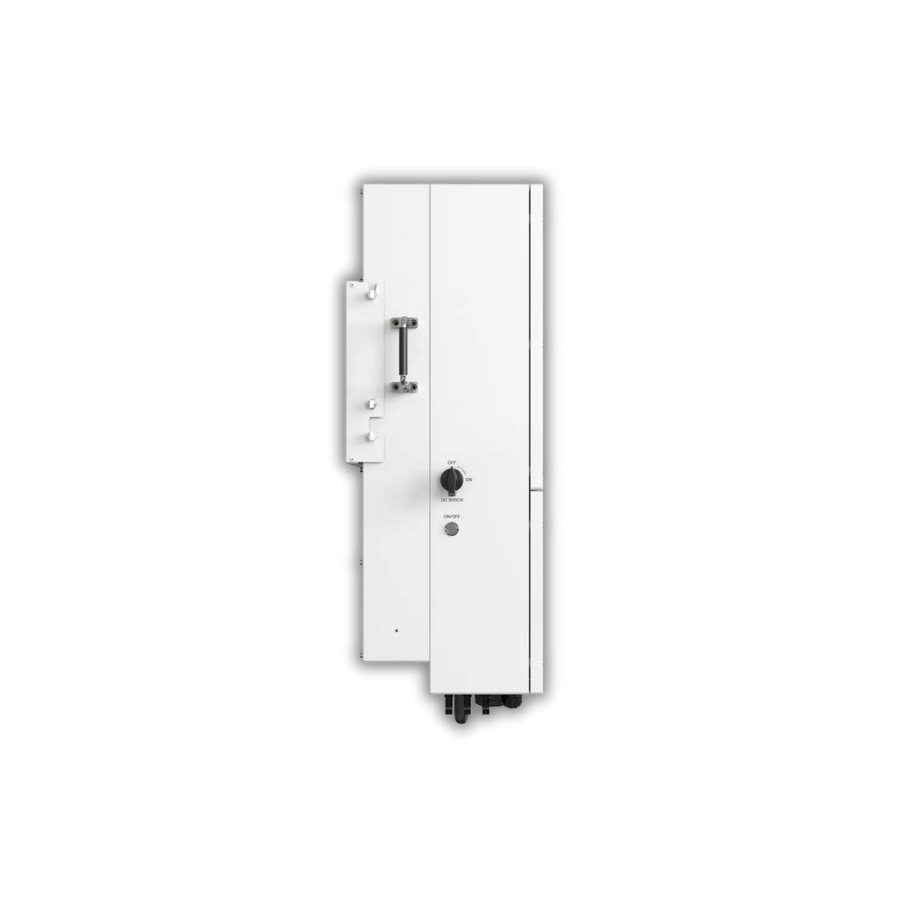

The Solis S6-EH3P12K02-NV-YD-L is a 12 kW three-phase hybrid inverter designed for residential and small commercial solar-plus-storage systems. It offers high PV input, smart battery control, and reliable backup power with scalable flexibility.
| Model Number | S6-EH3P12K02-NV-YD-L |
|---|---|
| Max. DC Input Power | 19,200 W |
| Max. DC Voltage | 600 V |
| MPPT Voltage Range | 90–520 V |
| Max. Input Current per MPPT | 16 A |
| Number of MPPTs / Strings per MPPT | 2 / 1 |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 135 A |
| Nominal AC Output Power | 12,000 W |
| AC Voltage / Frequency | 400 V / 50 Hz |
| Cooling Method | Passive cooling |
| Display | Color touchscreen |
| Protection Rating | IP66 |
The S6-EH3P12K02-NV-YD-L from Solis is part of the advanced S6-EH3P series, tailored for three-phase energy storage applications using low-voltage (48V) batteries. With a 12 kW output and dual MPPTs supporting up to 32A input current, it accommodates high-power PV modules with ease. The inverter features UPS-level switching for uninterrupted backup, PV-only off-grid operation to reduce battery dependency, and parallel support for up to six units for scalable installations. It includes generator compatibility, CAN/RS485 communication ports, and remote monitoring via SolisCloud. With IP66 protection and EN50549-1 grid compliance, it’s built for durability, safety, and smart energy management.
