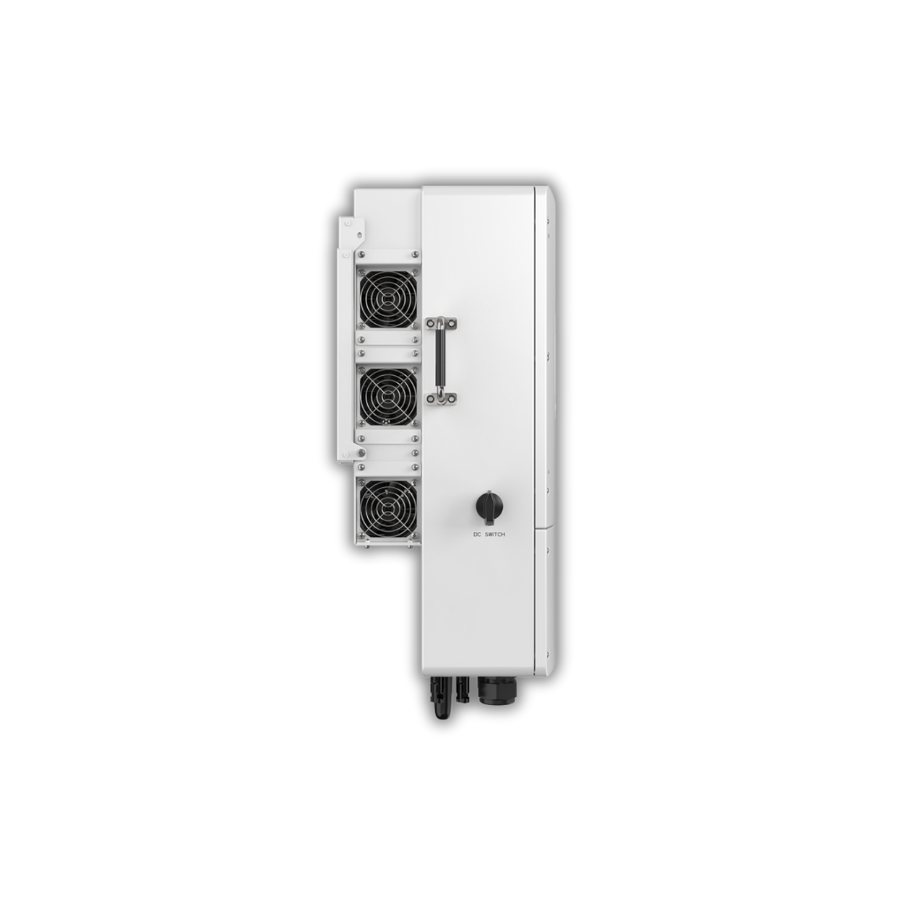

The Solis S6-EH3P10K02-NV-YD-L is a 10 kW three-phase hybrid inverter designed for residential and small commercial solar systems. It combines high-efficiency solar conversion, intelligent battery management, and reliable backup power in one robust unit.
| Model Number | S6-EH3P10K02-NV-YD-L |
|---|---|
| Max. DC Input Power | 15,000 W |
| Max. DC Voltage | 600 V |
| MPPT Voltage Range | 90–520 V |
| Max. Input Current per MPPT | 16 A |
| Number of MPPTs / Strings per MPPT | 2 / 1 |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 135 A |
| Nominal AC Output Power | 10,000 W |
| AC Voltage / Frequency | 400 V / 50 Hz |
| Dimensions (W × H × D) | 482 × 420 × 190 mm |
| Weight | 24.5 kg |
| Protection Rating | IP66 |
The S6-EH3P10K02-NV-YD-L from Solis is part of the advanced S6-EH3P series, tailored for three-phase solar-plus-storage applications. With a 10 kW output and support for low-voltage (48V) batteries, it enables seamless integration of solar generation and energy storage. The inverter features dual MPPTs with high input current capacity, allowing compatibility with powerful PV modules. It supports UPS-level switching for uninterrupted backup, PV-only off-grid operation to reduce system costs, and parallel operation of up to six units for scalable installations. Designed for flexibility and resilience, it includes AFCI protection, generator input, and remote monitoring via SolisCloud, making it ideal for energy-conscious homes and businesses.
