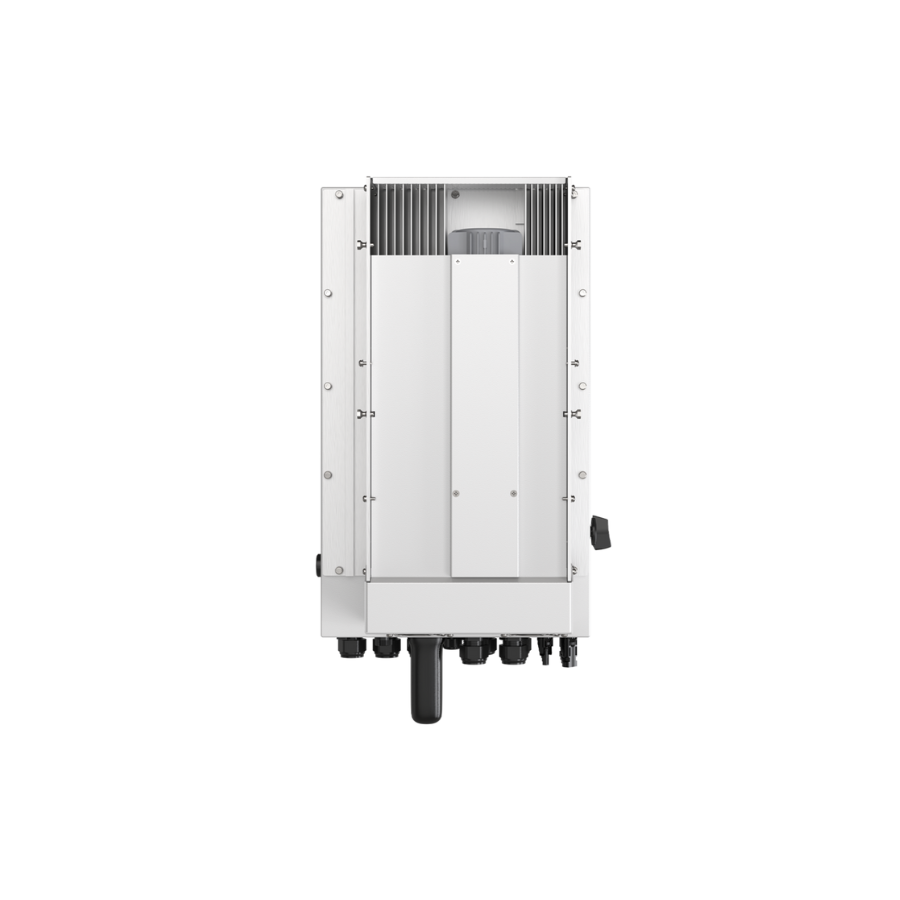

The Solis S6-EH1P8K-L-PLUS is an 8 kW single-phase hybrid inverter designed for residential solar-plus-storage systems, offering high MPPT input, UPS-level backup, and smart energy management for reliable, efficient power control.
| Model Number | S6-EH1P8K-L-PLUS |
|---|---|
| Max. DC Input Power | 12,000 W |
| Max. DC Voltage | 600 V |
| MPPT Voltage Range | 90–520 V |
| Max. Input Current per MPPT | 16 A |
| Number of MPPTs / Strings per MPPT | 2 / 1 |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 135 A |
| Nominal AC Output Power | 8,000 W |
| AC Voltage / Frequency | 230 V / 50 Hz |
| Dimensions (W × H × D) | 482 × 420 × 190 mm |
| Weight | 24.5 kg |
| Protection Rating | IP65 |
The Solis S6-EH1P8K-L-PLUS hybrid inverter delivers robust performance for residential energy systems by combining solar generation, battery storage, and grid interaction. With 8 kW output and dual MPPTs supporting up to 32A input current, it’s optimized for high-power PV modules. The inverter features intelligent battery management, 6-stage timed charge/discharge settings, and seamless UPS switching for uninterrupted power. It supports parallel operation of up to six units, enabling scalable systems up to 48 kW. Designed for flexibility and reliability, it includes an independent generator interface and remote monitoring via SolisCloud, making it ideal for homes seeking energy independence and smart control.
