The Livoltek BHF-G60 is a modular high-voltage battery system with 61.4 kWh capacity per cluster, scalable up to 300 kWh. It’s ideal for commercial backup and solar storage, offering smart BMS control and long-lasting LFP cell performance
| Model Number | BHF-G15~60 |
|---|---|
| Nominal Voltage | 614.4 V |
| Voltage Range | 518.4–691.2 V |
| Rated Capacity | 100 Ah |
| Total Energy | 61.4 kWh |
| Usable Energy | 55.3 kWh |
| Rated Power | 30.7 kW |
| Max Power | 61.4 kW |
| Charge/Discharge Current | 50 A (rated), 80–100 A (max) |
| Dimensions (W × H × D) | 545 × 480 × 2000 mm |
| Weight | 605 kg |
| Cooling Method | Natural |
| Communication | CAN / RS485 |
| Protection Rating | IP20 |
| Operating Humidity | 5%–95% |
| Altitude Limit | <4000 m |

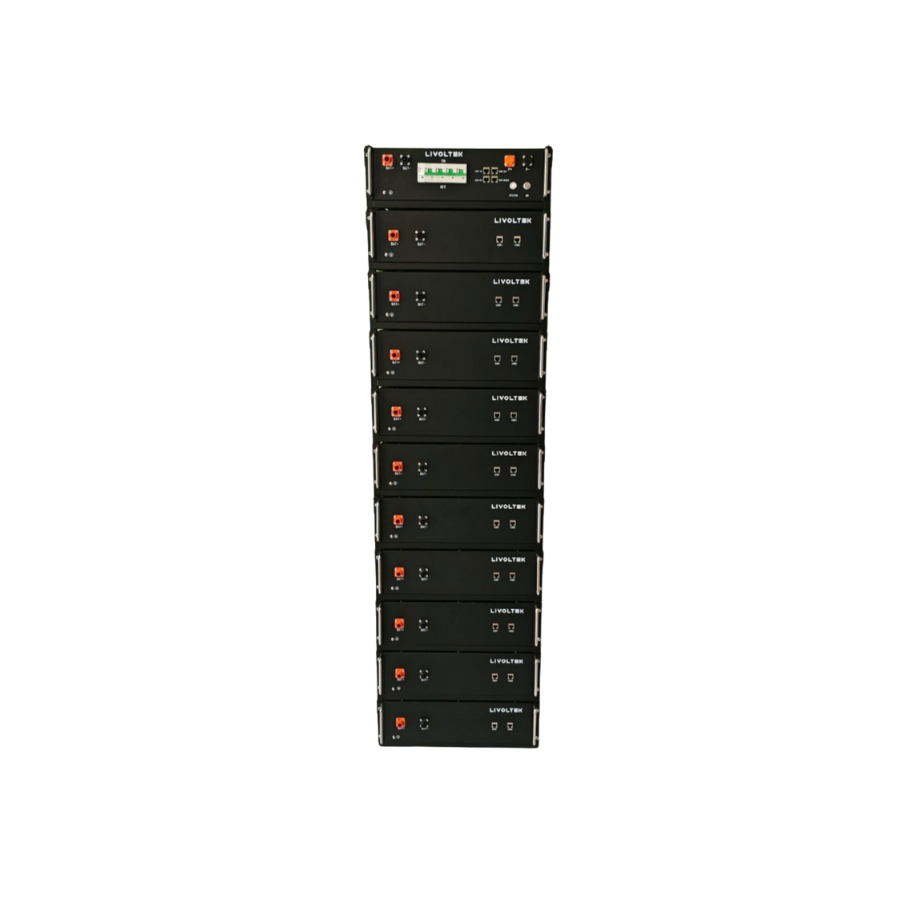

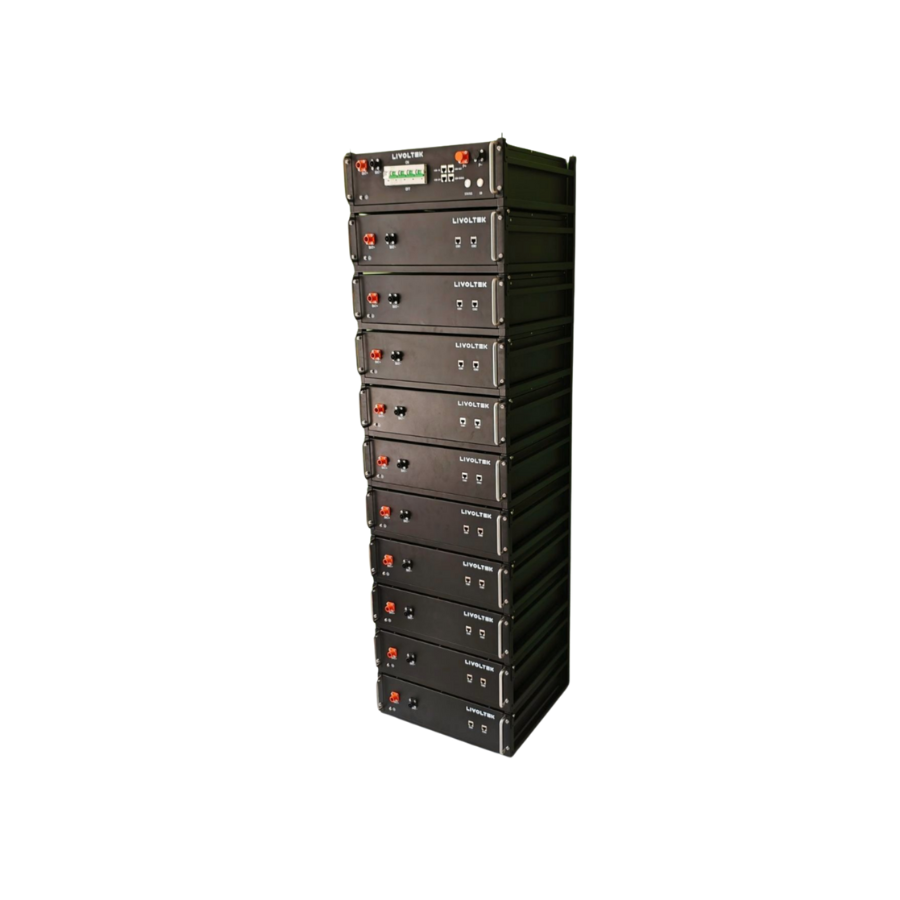

The BHF-G60 is part of Livoltek’s BHF-G series, engineered for scalable energy storage in commercial and industrial settings. Each cluster consists of 12 rack-mounted LFP battery modules, totaling 61.4 kWh of energy. With support for up to 5 clusters in parallel, the system can reach 300 kWh capacity. It features a smart BMS with multi-level protection, real-time monitoring via CAN/RS485, and natural cooling for silent operation. The system is ideal for backup power, peak shaving, and PV integration in facilities like hotels, shops, and small factories.
