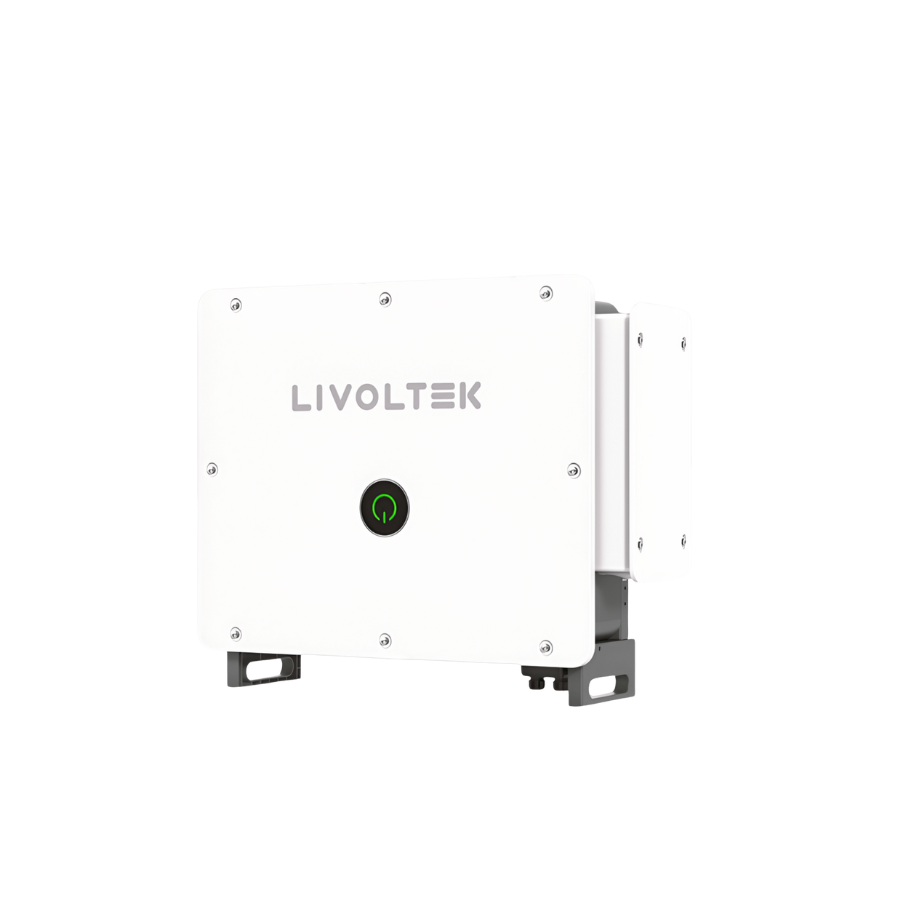

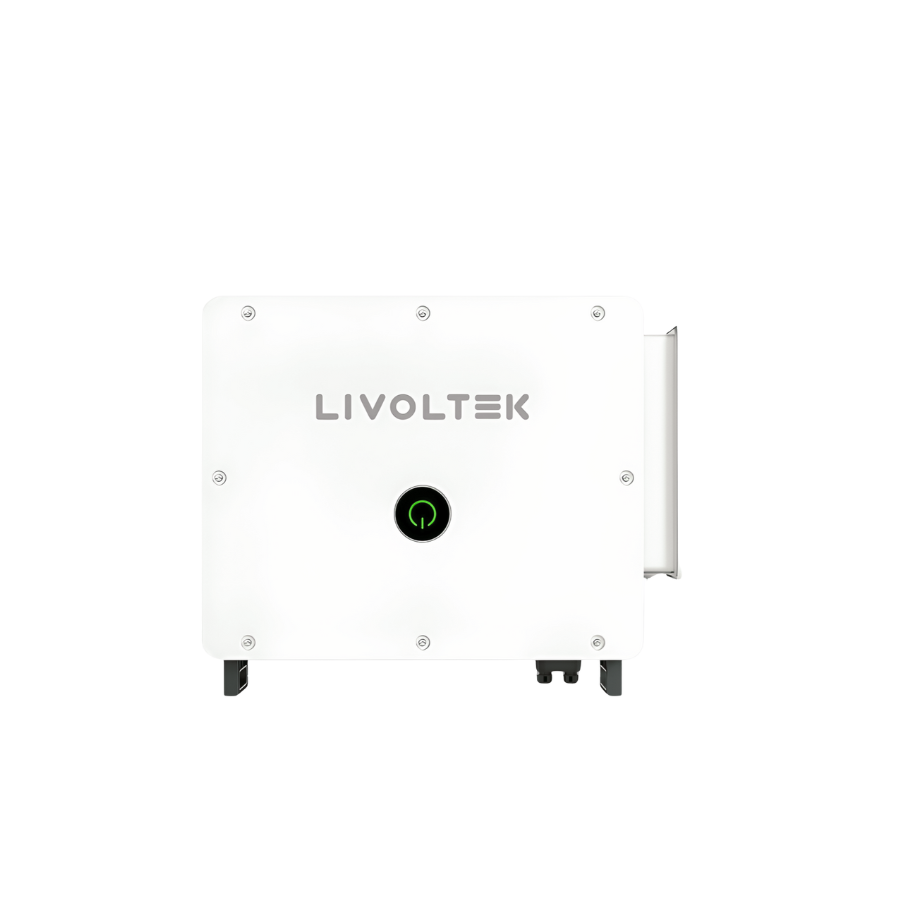

The Livoltek GT3-75 / 100 / 110 / 125K series of inverters is extensively utilized in commercial and industrial ground-mounted power stations.
| Model Number | GT3-125K-1 |
|---|---|
| Dimensions (W*H*D) [mm] | 725 * 960 * 369 mm |
| Weight [kg] | 87 kg |
| Mounting Information | Wall Mounting |
| Protection Degree | IP66 |
| Operating Temperature Range [°C] | '-30°C to +60°C (Derating at 45°C) |
| Relative Humidity | 0-100% |
| Max. Operating Altitude [m] | 4000 (≥3000) derating |
| Night Self Consumption [W] | <5 W |
| Display | LED+APP |
| Communication | RS485, Wi-Fi |
| Topology | Transformerless |
The Livoltek GT3-75 / 100 / 110 / 125K series of inverters is extensively utilized in commercial and industrial ground-mounted power stations. These inverters feature an innovative intelligent fan cleaning design, making them well-suited for harsh desert environments and significantly enhancing the product’s service life. With exceptional compatibility, they support a maximum input current of 40A, allowing them to accommodate 210+ high-current modules. Equipped with up to 10 Maximum Power Point Trackers (MPPTs) and precision algorithms, they can flexibly adapt to complex installation environments, thereby increasing power generation. Additionally, they support global MPPT scanning, built-in Power Factor Correction (PFC), night SVG (Static Var Generator), and remote monitoring capabilities, ensuring customers receive continuous, stable long-term service and maximizing power generation benefits.
